KC Roller Chain Coupling, High Torque Shaft Connector

Precision‑machined teeth provide smooth engagement, reduced wear, and extended service life. Easy to install and maintain, with customizable bore sizes, keyways, and taper lock options available.
Request Quote

KC Roller Chain Coupling – Trusted Power Transmission for Leading Agricultural Brands

Engineered for heavy-duty performance in the world’s most demanding farming environments, the KC Roller Chain Coupling is a preferred choice for global agricultural machinery leaders. Designed to seamlessly integrate with equipment from top brands, this coupling delivers uncompromising torque transmission, shock resistance, and durability—critical for maximizing uptime during harvest seasons.

Crafted with heat-treated alloy steel sprockets and high-strength double-row roller chain, the KC coupling excels at handling sudden load fluctuations and extreme vibrations. Its precision-machined tooth profile ensures smooth engagement and extended service life, while its ability to compensate for axial, radial, and angular misalignment protects valuable shafts and bearings. This robust design makes it ideal for use in key systems of leading agricultural equipment, including:

• John Deere combine harvesters (header drives, threshing cylinders) and tractors (PTO systems)

• Kubota corn harvesters and rice transplanters

• Yanmar mini tillers and small-scale harvesters

• Zoomlion and Lovol large agricultural machinery

Easy to install and maintain, the KC Roller Chain Coupling offers customizable bore sizes, keyways, and taper lock configurations to match the exact specifications of major brands. Whether used in dusty fields, wet conditions, or high-cycle operations, it provides reliable performance that agricultural professionals depend on.

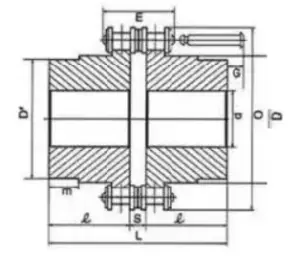

Product parameters

Model Chain Shaft diameter(d) Main body size Kg
pitch MAX width
E		 Min
(H10)		 Max 0 D D! M L l S G
KC-3012 9.525 23.9 14(12) 16 45 27 25.2 5.5 64.8 30 4.8 6 0.4
KC-4012 12.70 32.0 14(12) 22 61 36 32.5 10 79.4 36 7.4 11 0.8
KC-4014 12.70 32.0 14(12) 28 69 45 43 9 79.4 36 7.4 11 1.10
KC-4016 16(14.5) 32 77 51 48 15 87.4 40 7 1.4
KC-5014 15,875 39.9 16(14) 35 86 56 53 16 99.7 45 9.7 12 2.2
KC-5016 18(16) 40 96 63 60 16 2.7
KC-5018 15,875 39.9 18(16) 45 106 73 70 16 99.7 45 9.7 12 3.8
KC-6018 19.05 52.5 22(20) 55 128 88 85 18 123.5 56 11.5 19 6.2
KC-6020 19.05 52.5 22(20) 60 140 103 98 16 123.5 56 11.5 19 7.8
10.4
KC-6022 22(20) 70 152 115 110 12
KC-8018 25.40 66.2 22(20) 80 170 115 110 15 141.2 63 15.2 31 12.7
KC-8020 22(20) 85 186 125 121 12 145.2 65 29 16.0
KC-8022 25.40 66.2 22(20) 100 202 143 140 19 157.2 71 15.2 23 20.2
KC-10020 31.75 79.0 27(25) 110 232 162 160 40 178.7 80 18.8 32 33.0
KC-12018 38.10 101.2 37(35) 125 255 173 170 56 202.7 90 22.7 53 47.0
KC-12022 37(35) 140 303 213 210 55 222.7 100 43 72.0

Note: Custom configurations available to fit additional agricultural brands and specific equipment models. Contact our technical team for tailored solutions.
